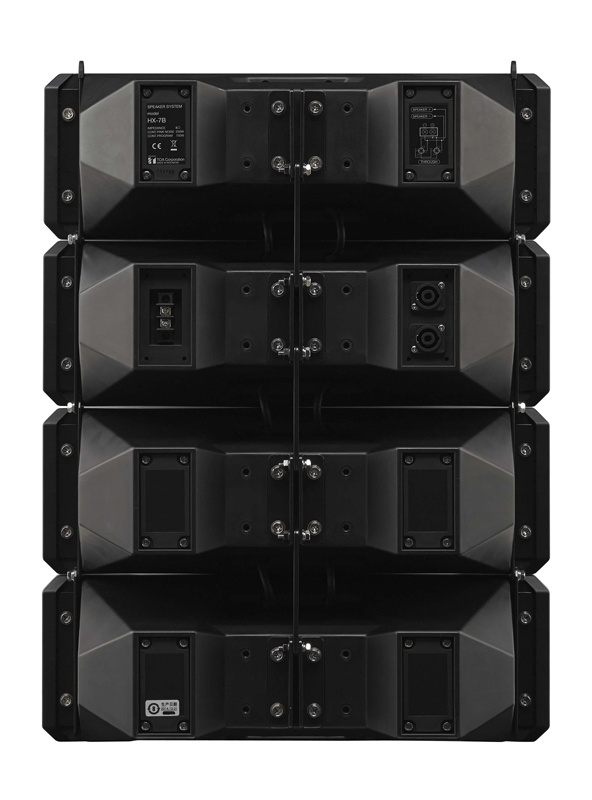

HX-7B Compact Line Array Speaker System
฿45,903.00
รายละเอียดสินค้า
HX-7B Compact Line Array Speaker System
The HX-7B is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in vertical directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise. The HX-7B is designed for indoor use.
Enclosure Bass-reflex type
Power Handling Capacity Continuous pink noise: 250 W (IEC60268-5: 350 W)
Continuous program: 750 W
Rated Impedance 8 Ω
Sensitivity 100 dB (1 W, 1 m)
Frequency Response 75 Hz – 20 kHz
Crossover Frequency 1.7 kHz
Directivity Angle Horizontal: 100゜
Vertical: Depending on directivity angle mode
Speaker Component Low frequency: 13 cm (5.5″) cone-type × 8
High frequency: Wave front control horn with compression driver × 4
Input Terminal Speakon NL4MP × 2 and M4 screw terminal, distance between barriers: 9 mm (0.35″)
Finish Enclosure: Polypropylene, black
Punched net: Surface-treated steel plate, black, paint
Hanging bracket: Steel plate, t3.0, black, paint
Dimensions 497 (W) × 664 (H) × 274 (D) mm (19.57″ × 26.14″ × 10.79″)
Weight 30 kg (66.14 lb)
Accessory Hanging bracket L, R (L and R are symmetrical to each other.) …1 each,
Hanging bracket mounting bolt …4
Option Matching transformer: MT-200 (*1)
Matching transformer adapter: HY-MT7
Speaker mounting bracket: HY-60DB, HY-CN7B, HY-PF7B, HY-VM7B, HY-WM7B (*2),
HY-C0801 (*2)
Speaker stand adapter: HY-ST7
