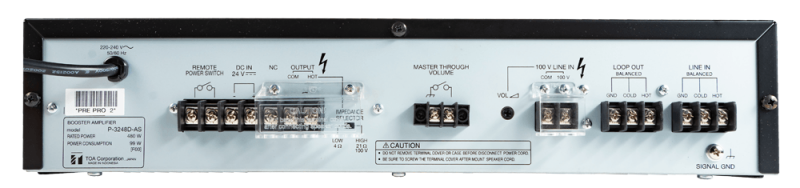

P-3248D-AS Digital PA Amplifier

Original price was: ฿19,500.00.Current price is: ฿16,275.00.


P-3248D-AS      Digital PA Amplifier

P-3248D is a high performance yet cost-effective digital booster amplifier equipped suited for broadcasting, paging, or background music in schools, offices, shops, houses of worship and large ballrooms.

Power Source 100 – 240 V AC, 50/60Hz or 24 V DC

Rated Output 480 W

Power Consumption 99 W (AC operation at 1/8 maximum output without clip)

Frequency Response 50 – 20,000 Hz

Input Line In: 0 dB*, 10 kΩ, balanced, screw terminal

100 V Line In: 40 dB*, 30 kΩ, unbalanced, screw terminal

Output Speaker out: Speaker Output in screw type terminal

Direct line (selectable): 21 Ω (100 V) or 4 Ω

Rec out: 0 dB*, 600 Ω, unbalanced, screw terminal

Control Remote power control, screw terminal

Remote master volume bypass, screw terminal

S/N Ratio Over 70 dB

Total Harmonic Distortion Under 1% at 1 kHz, 1/3 rated power

Tone Control Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

Indicator Power, Signal , Peak

Ventilation Fan Cooling

Finish Panel: ABS resin, black

Case: Steel plate, black

Dimensions 420 (W) × 100.9 (H) × 351.3 (D) mm

Weight 5.2 kg
