TS-D1000-SU Sub Control Unit

Original price was: ฿33,400.00.Current price is: ฿27,876.00.


TS-D1000-SU   Sub Control Unit

The TS-D1000-SU Sub Control Unit is exclusively designed to be used with the Digital Conference System, TS-D1000 Series.

It allows easy expansion of the conference system by connecting it to the TS-D1000-MU Master Control Unit. Up to 48 Chairman/Delegate units can be connected to each Sub Control Unit using CAT5e STP LAN cables. And up to 5 Sub Control Units can be connected to the Master Control Unit using the supplied LAN cable. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (1 unit size).

Power Source 100 – 240 V AC, 50/60 Hz (use of the supplied AC adapter)

Power Consumption 80 W or less

Number of Connectable Chairman/Delegate Units 48 units

Chairman/Delegate Units Terminal RJ45 connector x 3

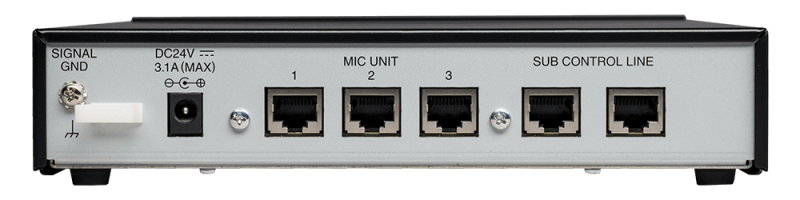

Master/Sub Control Units Terminal RJ45 connector x 2

Maximum Cable Distance 50 m (between Sub Control Unit and terminal Chairman/Delegate unit at end of daisy chain)(*1)

LED Indicator Power Indicator

Operating Temperature 0 ℃ to +40 ℃

Operating Humidity 90 %RH or less (no condensation)

Finish Panel: Aluminum, black, 30% gloss, paint

Case: Surface-treated steel plate, black, 30% gloss, paint

Weight 1.6 kg

Accessory AC adapter (Cord length: 1.8 m DC cord, and 2 m detachable AC cord) x 1

Connection Cable (CAT5e STP, 1m) x 1

Option Rack mounting bracket: MB-15B-BK (for rack mounting one TS-D1000-SU unit)

                                   MB-15B-J (for rack mounting two TS-D1000-SU units)
