WS-422-AS Dual Wireless Set (Handheld)



WS-422   Dual Wireless Set (Handheld)

The WS-422 is a dual channel wireless microphone system set. This simple plug and play system is designed to launch you into the world of wireless. The rugged and compact frame contains a reliable multifunctioning system that is optimised for use with a range of microphones from handheld to lapels, headsets, and even musical instruments.

Product Composition Handheld wireless microphone x 2

Receiver x 1

Frequency Range 748 – 758 MHz, UHF

Channel Selectable Up to 16 channels (depending on region)

Tunable Frequencies 25 kHz Steps

Pilot Tone 32.768 kHz

Total Harmonic Distortion <1% @ 1kHz

Function IR sync, Channel scan, Battery indicator

Accessory AC adapter x 1

Microphone holder x 2

Wireless Microphone

Microphone Element Dynamic with cardioid pattern

RF Carrier Power 10 mW

Audio Frequency Response 80 – 15,000 Hz

Audio Input Level 140 dB SPL (Maximum)

Modulation System PLL synthesizer

Battery 1 AA size alkaline battery, 1.5V

Battery Life Approx. 10 hours

Indicator Battery Status LED, 7 Segments LED

Finish Resin, coating

Dimensions Approx. 250 x 50 mm

Weight Approx. 245 g (with battery)

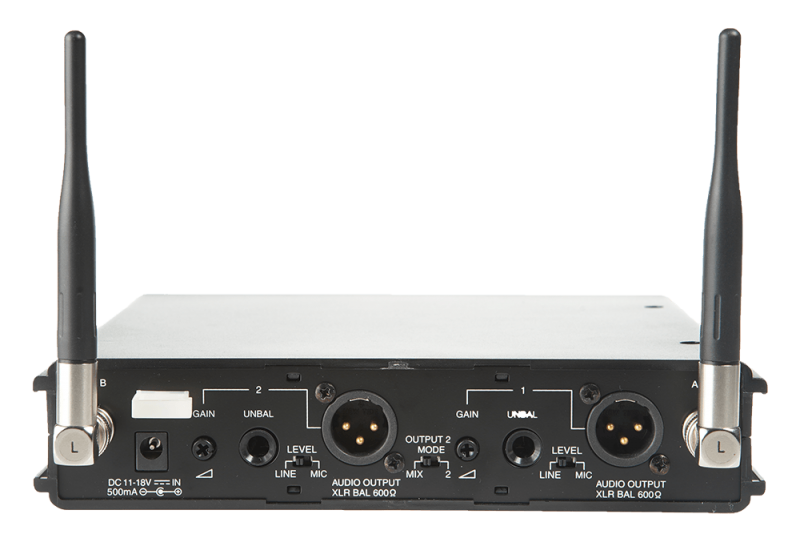

Dual Wireless Receiver

Diversity Reception AC mains (supplied AC-DC adapter must be used)

Sensitivity 10uV at 45dBA S/N

Squelch (SQ) Tone SQ, Carrier SQ and Noise SQ

Audio Frequency Response 50 – 15,000Hz

Audio Output Level (Maximum) Balanced (XLR socket): 16dBu

Unbalanced (1/4″ jack socket): 10dBu

Power Supply 11-18 VDC 300mA

Dimensions 210 (W) × 44 (H) × 202 (D) mm (excluding antenna)

Weight 720 g

Option Mounting bracket kit: MB-WT3 (for rack mounting one Dual Wireless Receiver)

                                MB-WT4 (for rach mounting two Dual Wireless Receiver)
