TS-780 Central Unit

Original price was: ฿9,400.00.Current price is: ฿7,845.00.


TS-780   Central Unit

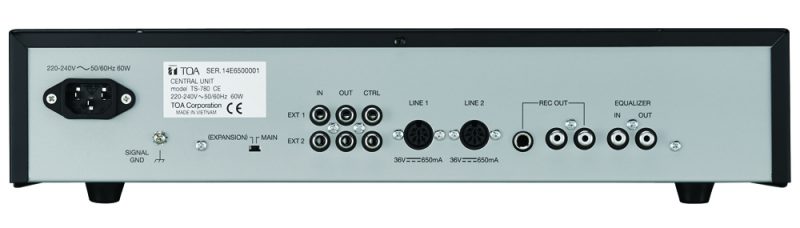

The TS-780 is a Central unit for TOA Conference system. Use of its line connection terminals permits connections to the conference units of TS-781 and TS-782, making up a conference system. The TS-780 is equipped with a MP3 recorder that permits conference contents to be recorded on a SD card. Up to 3 Central units can be connected. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (2 unit size).

Power Source 220 – 240 V AC, 50/60 Hz

Power Consumption 60 W

Rated Output 36 V DC, 650 mA × 2

Input MIC: -60 dB*, 600 Ω, unbalanced, phone jack

AUX: -20 dB*, 10 kΩ, unbalanced, phone jack

Output Recording: -20 dB*, 10 kΩ, unbalanced, phone jack, pin jack × 2

Headphones: Mini jack

Equalizer Insertion Input Terminal Input: 0 dB*, 10 kΩ, pin jack

Output: 0 dB*, 10 kΩ, pin jack

Expansion Input and Output Terminal Input: 0 dB*, 10 kΩ, unbalanced, pin jack × 2

Output: 0 dB*, 10 kΩ, unbalanced, pin jack × 2

Control: 10 kΩ or more, voltage output, pin jack × 2

Control Priority speech chime: Operation of TS-781’s priority button activates a single-tone chime

Speaker restriction: Number of simultaneously-usable TS-782s can be set to 0 – 4.

Automatic Mic-off function: OFF, 30 s (selectable)

Feedback Suppressor function (FBS): EXT, OFF, AUTO, MANUAL mode (selectable)

MP3 recording and playback

Operating Temperature 0 ℃ to +40 ℃ (32 F to 104 F)

Operating Humidity 90 %RH or less (no condensation)

Finish Panel: Aluminum, black, 30 % gloss, paint

Case: Steel plate, black, 30 % gloss, paint

Dimensions 420 (W) × 96.1 (H) × 226.2 (D) mm (16.54″ × 3.78″ × 8.91″)

Weight 3 kg (6.61 lb)

Accessory Power cord (2 m (6.56 ft))…1

Option Extension cord: YR-780-2M, YR-780-10M

Rack mounting bracket: MB-23B
