TS-920RC Center unit with Recording function

Original price was: ฿53,900.00.Current price is: ฿44,985.00.

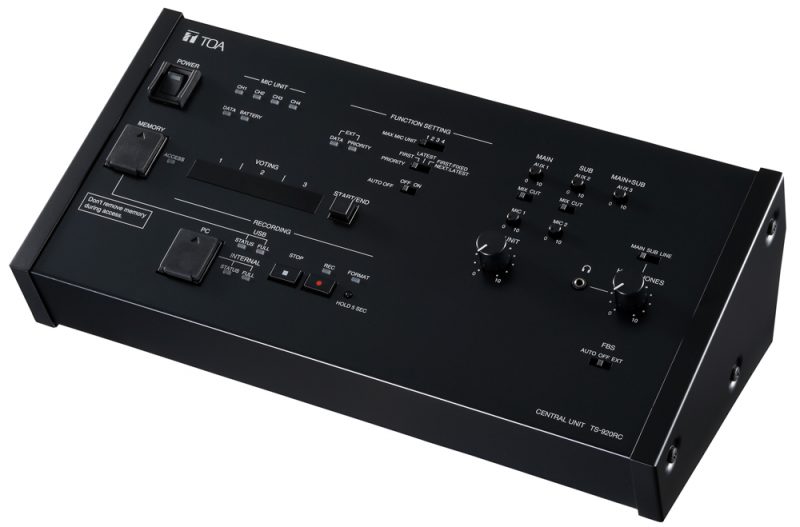

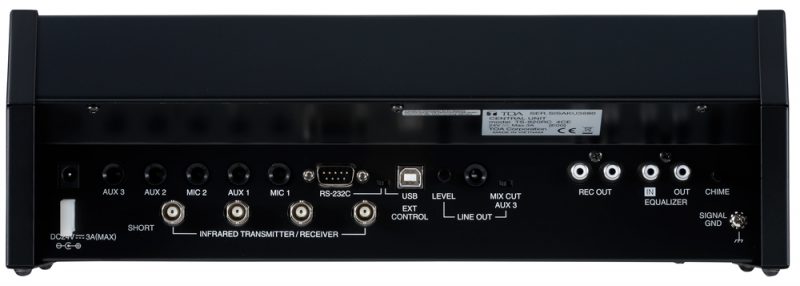

TS-920RC   Center unit with Recording function

The TS-920RC is a Central Unit of the Infrared Conference System that allows easy installation and flexible layout. By connecting TS-905/907 IR Transmitter/Receiver, TS-920RC can control the Chairman and Delegate Units via wireless infrared signal. It features the installation confirmation function that allows the connection status of IR Transmitter/Receiver and Chairman/Delegate Units to be verified, and the voting function. The TS-920RC is also equipped with FBS (Feedback Suppression), enabling effective control of acoustic feedback. In addition the unit employs an MP3 recorder that makes it possible to record all conference contents to either a connected USB memory drive or internal memory. The system can be controlled by PC (*1). With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size).

Power Source 100 – 240 V AC, 50/60 Hz (use of the supplied AC adapter)

Power Consumption 72 W

Current Consumption Max. 3 A DC (when 24 V DC is supplied from the accessory AC adapter)

Carrier Frequency Reception:

Audio Channel 1: 7.35 MHz

Audio Channel 2: 8.10 MHz

Audio Channel 3: 8.55 MHz

Audio Channel 4: 9.15 MHz

Control Channel: 6.45 MHz

Transmission: Audio Channel: 1.95 MHz

                     Translation Language Channel: 2.25 MHz

Input MIC 1 (Base Language): -60 dB*, 600 Ω, unbalanced, Ø 6.3mm phone jack (2P)

MIC 2 (Translation Language): -60 dB*, 600 Ω, unbalanced, Ø 6.3mm phone jack (2P)

AUX 1 (Base Language): -20 dB*, 10 kΩ, unbalanced, Ø 6.3mm phone jack (2P)

AUX 2 (Translation Language): -20 dB*, 10 kΩ, unbalanced, Ø 6.3mm phone jack (2P)

AUX 3 (Base and Translation Language): -20 dB*, 10 kΩ, unbalanced, Ø 6.3mm phone jack (2P)

Output LINE: -10 dB*, 10 kΩ, unbalanced, Ø 6.3mm phone jack (2P)

REC: -10 dB*, 10 kΩ, unbalanced, RCA pin jack

HEADPHONE: Ø 3.5mm mini jack (3P: monaural)

Equalizer Input/Output Input: -20 dB*, 10 kΩ, unbalanced, RCA pin jack

Output: -20 dB*, 10 kΩ, unbalanced, RCA pin jack

Number of Connectable Chairman/Delegate Units 192 units

Number of Connectable Infrared Transmitter/Receiver Units Up to 4 units (with the use of distributor, up to 16 units connectable when they are all TS-905, and up to 12 units when they are all TS-907, or TS-905 and TS-907 are used in combination)

Infrared Transmitter/Receiver I/O Terminal BNC jacks

External Control Connection Terminal D-sub connector (9 P, male) / USB-B selectable

LED Indicator Voting result indicators 1-3 (7-segment LED, 3 digits), Short-circuit indicator, Audio signal receiving indicators 1 – 4 CH, Data signal receiving indicator, External control priority indicator, External control communication indicator, Battery indicator (flashes when a Chairman/Delegate unit’s battery nears complete discharge), Recording status indicator, Format in-progress indicator, Access indicator, Internal memory status indicator, USB memory status indicator, Remaining internal memory capacity warning indicator, Remaining USB memory capacity warning indicator

Record Switch Recording start button, Recording stop button, Format button

Recording Ports USB-A (for USB memory devices) and USB mini-B (for PCs)

Recording Function Recordings can be made to a USB memory device (**) or the internal memory.

Recording format: MP3 (MPEG-1 Audio Layer-3), monaural

                           Sampling frequency: 32 kHz, Bit rate: 128 kbps

Function Switch No. of open microphones setting switch: 1/2/3/4

Mic-off setting switch: TIME OUT ON/OFF

Speech priority selector switch: FIRST (First-in-first-out priority), LATEST (Last-in-first-out priority), FIRST: FIXED NEXT: LATEST (Priority fixed for the first unit, and last-in-first-out for all other subsequent units)


Operating Temperature 0 ℃ to +40 ℃ (32 F to 104 F)

Operating Humidity 90 %RH or less (no condensation)

Finish Panel: Surface-treated steel plate, black, 30% gloss, paint

Weight 2.8 kg (5.95 lb)

Accessory AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable AC cord)…1

Option Rack mounting bracket: MB-TS920

Operating Software Features Control up to 4 IP camera (Onvif)

Control speech time

Selection of Chairman or Delegate unit for speech request and approval

Ability to map actual conference layout in software display
