WS-432-AS Dual Wireless Set (Lavalier)



WS-432   Dual Wireless Set (Lavalier)

The powerful WS-432 is a dual channel wireless microphone system set that combines exceptional performance with cost efficiency. The simplest plug and play system is designed to launch you into the world of wireless. The rugged and compact frame contains a reliable multifunctioning system that is optimised for use with a range of microphones from handheld to lapels, headsets, and even musical instruments.

Product Composition Wireless transmitter x 2

Receiver x 1

Lavalier Microphone x 2

Frequency Range 748 – 758 MHz, UHF

Channel Selectable Up to 16 channels (depending on region)

Tunable Frequencies 25 kHz Steps

Pilot Tone 32.768 kHz

Total Harmonic Distortion <1% @ 1kHz

Function IR sync, Channel scan, Battery indicator

Accessory AC adapter x 1

Screw driver x 1

Lavalier microphone x 2

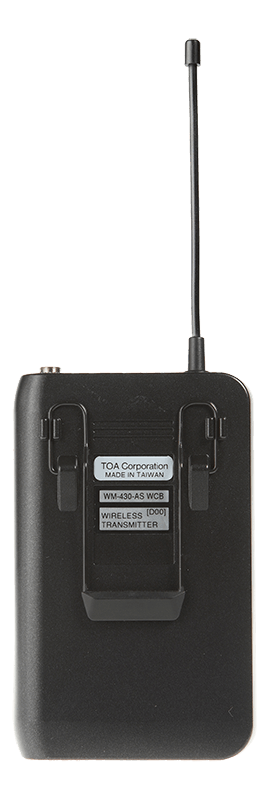

Wireless Transmitter

Microphone Element Back electret condenser; Omni-directional

RF Carrier Power 10 mW

Audio Frequency Response 50 – 15,000 Hz

Audio Input Level -6dBV (Maximum), mic gain 0dB

Modulation System PLL synthesizer

Battery 1 AA size alkaline battery, 1.5V

Battery Life Approx. 10 hours

Indicator Battery Status LED, 7 Segments LED

Finish Resin, coating

Dimensions 62 (W) x 100 (H) x 25 (D) mm (with clip)

Weight Approx. 85 g (with battery)

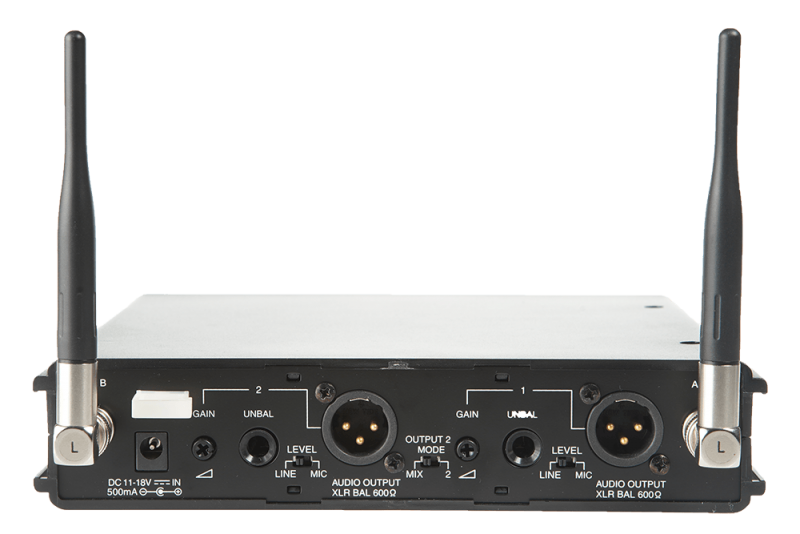

Wireless Receiver

Diversity Reception AC mains (supplied AC-DC adapter must be used)

Sensitivity 10uV at 45dBA S/N

Squelch (SQ) Tone SQ, Carrier SQ and Noise SQ

Audio Frequency Response 50 – 15,000Hz

Audio Output Level (Maximum) Balanced (XLR socket): 16dBu

Unbalanced (1/4″ jack socket): 10dBu

Power Supply 11-18 VDC 300mA

Dimensions 210 (W) × 44 (H) × 202 (D) mm (excluding antenna)

Weight 720 g

Option Mounting bracket kit: MB-WT3 (for rack mounting one Dual Wireless Receiver)

                                MB-WT4 (for rach mounting two Dual Wireless Receiver)
